Quick Release System – NN3, NN4, NN5 (F2203)

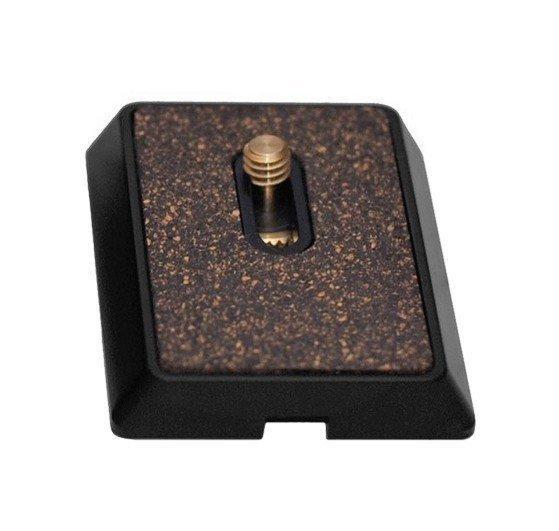

This is low profile Quick Release Plate allows your camera to be taken on and off quickly while maintaining a reproducible position on Nodal Ninja pano heads.

The plate mounts to the base of your camera.

Incorporated into the plate is a 15mm offset for battery grips (as with some Canon Grips) where the tripod mount is not centered with the barrel of the lens.

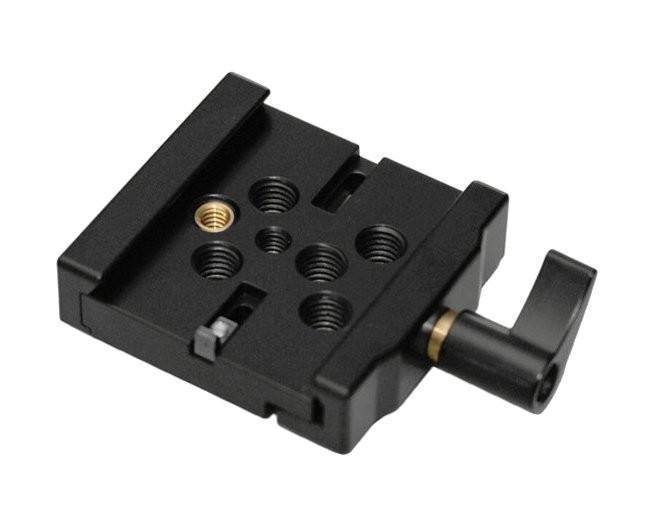

The clamp mounts to the upper rails of NN3/4/5.

Specifications

Material: Aluminum with cork base

Measures: 2.4″ x 1.9″x .4″ (61mm x 47.4mm x 10.5mm)

Thread mount: 1/4 inch slotted screw

Offset: 0-15mm

Note: This plate is not arca-swiss and will fit Manfrotto or Gitzo clamps.
