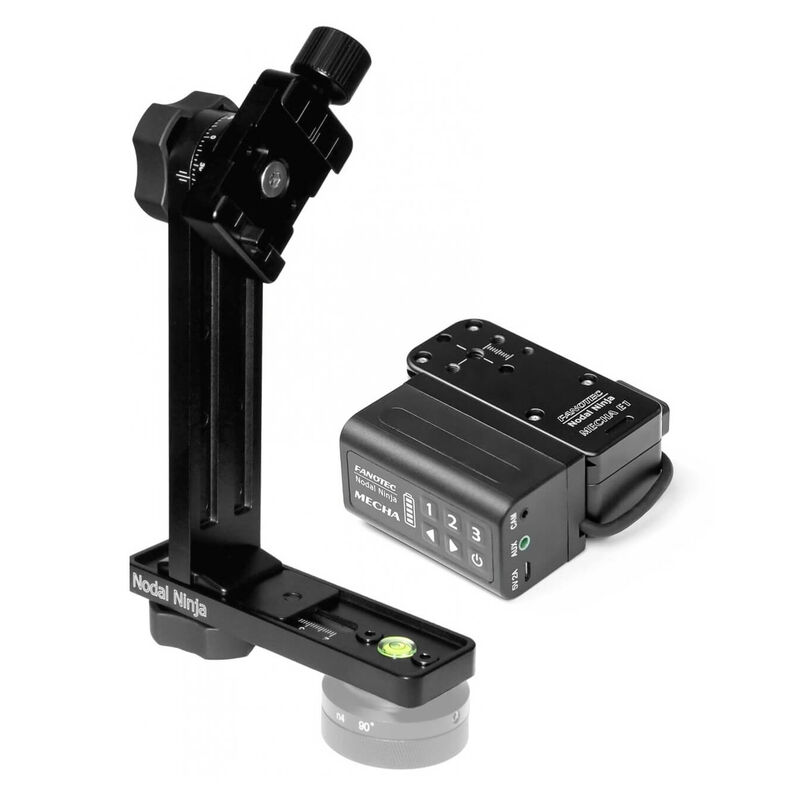

Mecha E1 / C1 Single Axis with RS1 (F9905-3)
$419.95
NOW SHIPPING!! Introducing the Mecha E1 Automated Rotator + Single Axis Controller. A new motorized rotator head for use with NN3 MKII, NN3 MK3, R1, R10, R20, RS4
A new motorized rotator head for use with NN3 MKII, NN3 MK3, R1, R10, R20, RS1, (heads sold separately). Adapters available for older 360Precison Atome heads. Mecha is lightweight, quiet and power efficient. Together with the Single Axis Controller (F9910), it automates the panning axis of Nodal Ninja. The Mecha E1 is NOT recommended for larger Nodal Ninjas (NN6 and M Series) at this time (stronger Mecha Rotators to accommodate greater weights are in development). Together with a “dual axis” controller (also in development), two E1 rotators can be added to motorize Nodal Ninja MK3 pan and tilt axes for multi-row application.
- Heavier loads may require a slower RPM speed for smoother rotation.
- Recommended ideal operating weight load is 3.3lbs (1.5kg) but should not exceed 2kg.
- Loads less than 3.3lbs (1.5kg), select a speed 6-12 RPM, with “medium load” profile.
- Loads greater than 3.3lbs (1.5kg) up to 4.4lbs (2kg), select a speed 6-9 RPM or slower, with “heavy load” profile.
Includes:
- Motorized MECHA Programmable Rotator E1 + Controller C1 (F9905).
- RS-1 No Lower Rotator (F9701) mounted to Mecha E1/C1.
- Mecha Micro USB Charging Cable (F9916).
- Camera to Mecha Shutter Release Cable.
Mecha Single Axis Controller Features:
- Supports one Mecha rotator.
- Compact controller with built in battery and charger.
- NCR18650GA high capacity batteries, 7.2v, 3350mAh, 12Wh.
- WiFi remote control from smartphones, tablets, PCs by using simple web page interface.
- Supports linking and controlling multiple controllers via WiFi , connection via a WiFi access point, over the air firmware upgrade and remote control over the internet.
- 3 buttons to run presets stored in the memory, which can be configured via the web page interface.
- 5 LED’s to indicate the remaining battery capacity.
- CAM port with opto-isolated trigger for focus and shutter release.
- Multipurpose AUX port (to be implemented with future firmware upgrade) for shutter confirmation, Radio Frequency Start/Stop remote trigger, wired Start/Stop trigger or IR remote emitter etc.
- The camera hot shoe gives a signal during exposure. We make use of this signal, as shutter release confirmation, to adjust the exposure delay timing automatically. This allows shortest delay for bracketed shots without risking premature moves.
- Camera in electronic mode however does not give this signal and only work with Mechanical shutter mode – as with any remote cable release.
- Connect PC Sync cable to AUX port and hot-shoe for it to work.
Total weight of Mecha E1 Rotator + Single Axis Controller approx. 17.35 oz (492g).
Supports up to 3.3lbs (1.5 kg) vertical loading, including panohead, and 1.0Nm turning torque (center of gravity is 8cm from pivot). DSLR’s with battery grips may exceed recommended weight load.
- 14 day money back guarantee
- 1 year factory warranty
Mecha Quick Reference Guide safe links:
- Accessing the Web Control Interface of MECHA – http://bit.ly/mecha-access
- How to update the firmware – http://bit.ly/mecha-firmware
- The Mecha E1 – basic setup and how to use – http://bit.ly/mecha-setup
- Mecha Questions Forum – http://bit.ly/mecha-forum
| Cable | Fujifilm RR-90 (F9980-3), Minolta RC-1000S, Sony RM-S1AM (F9980-4), Olympus RM-CB1 (F9980-8), Olympus RM-UC1 (F9980-9), Panasonic DMW-RSL1 (F9980-10), Pentax CS-310 (F9980-12), Canon RS-60E3, Contax LA-50, Pentax CS205, Olympus RM-CB2, Sigma CR-21 (F9980-1), Canon RS-80N3 (F9980-2), Nikon MC-30A (F9980-5), Nikon MC-DC1 (F9980-6), Nikon MC-DC2 (F9980-7), Sony RM-VPR1 (F9980-11) |
|---|
