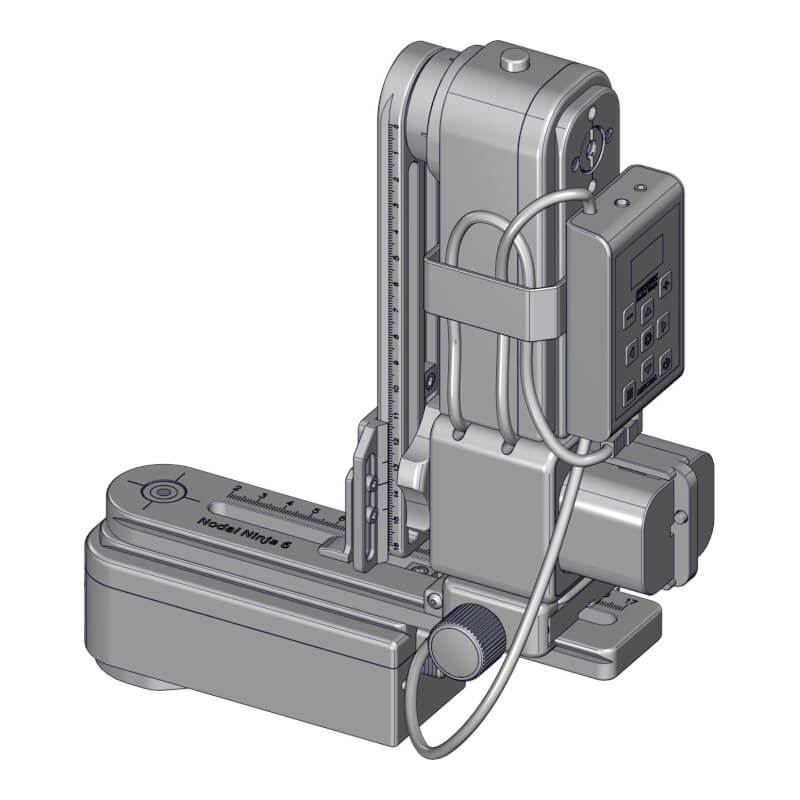

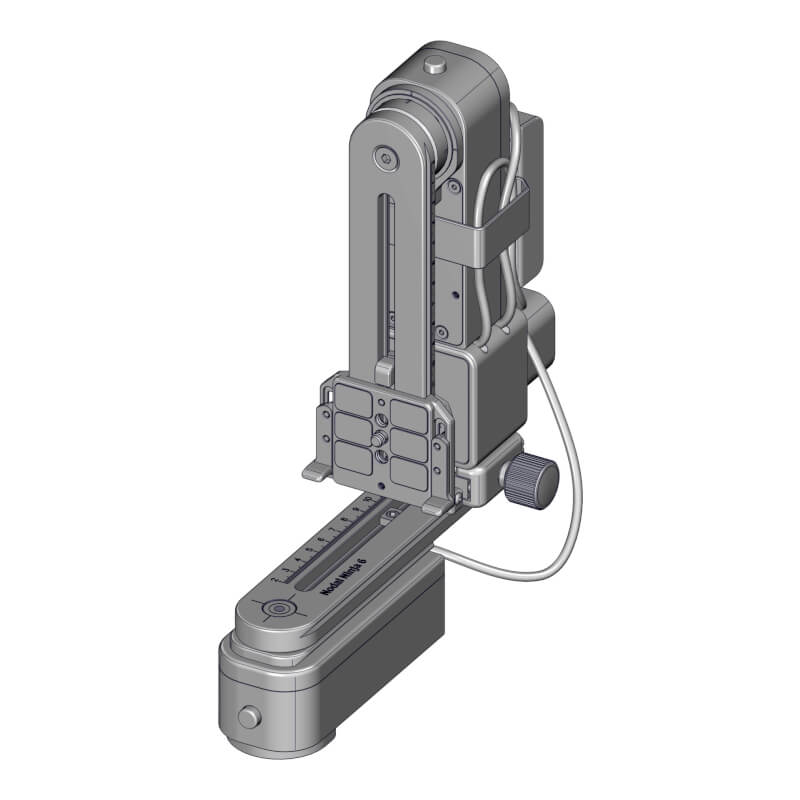

Dual Axis MECHA E2 C2 with NN6 and Nadir Adapter (F9922)

$1,195.95

Heavy duty Mecha E2 with new C2 Controller for NN6.

Dual axis pan and tilt.

Product price: $1,195.95
Total options:
Order total:

Finally a heavy duty and affordable “dual-axis” pan tilt head solution for full size DSLRs and lenses.

We use parts from NN6, together with 2x Mecha E2 Rotators and 2x C2 Controllers which are wirelessly linked together.

The Mecha E2 and C2 being modular in design will be compatible with future Mecha rotators and controllers paving the way for future low-cost upgrade paths.

  • This setup supports a camera/lens up to 3.0 kg (6.6 lb) and NPP up to 145mm from the pivot point making it ideal for mirror-less, and full size DSLR cameras.
  • Shoot 360° panoramas or even high-resolution gigapixel images.
  • Max height of lens axis from camera base supported is 76.5mm.
  • Weight without spare and case: 2.07kg
This is a direct replacement for the F9908 dual-axis C1-E2 NN6 combo.


Includes:

  • Two Mecha E2 Rotator
  • One Mecha C2 Controller
  • One NN6 Lower Rail
  • One NN6 Upper Rail
  • One Battery Holder and Extender for E2 Rotator.
  • One 1.2m Long Shutter release cable compatible with Dual-Axis Mecha
  • One Carrying Case
  • Misc.

Introductory offer: Free battery and a dual-channel charger. $50 in value!

A plug that is used at your shipping location will be included.



Mecha E2 Rotator Features

  • Supports 8.8bs (4kg), including panohead, strong enough for dual camera stereo setups.
  • Compact and light weight for the load rating.
  • Weight  22.8 oz (645g)
  • 126x48x51mm
  • Total weight of Mecha Rotator E2 + Single Axis Controller C1 approx. 29.3 oz (830g).
  • 14 day money back guarantee
  • 1 year factory warranty
  •  Any camera supporting a wired remote shutter release cable is compatible with MECHA.

Mecha documentation click here



MECHA Controller C2 Features:

  • Controlling two MECHA rotators.
  • Compact with an OLED display.
  • 9 buttons for controls and inputs, including a button to trigger camera shutter release.
  • Shortcut keys to run presets stored in the memory, which can be configured via the web page interface.
  • WiFi remote control from smartphones, tablets, PCs by using simple web page interface.
  • Connection via a WiFi access point and remote control over the internet.
  • Over-the-air firmware update.
  • Linking and controlling multiple controllers via WiFi (future firmware development).
  • External power input (DC 9-19V, 2A rated, plug 1.7×4.0x9.5mm) for use with different battery packs, or regulated power supplies for continuous operation.
  • CAM port to trigger camera focus and shutter release.
  • Support any camera with a wired remote release port.
  • Multipurpose AUX port for:
  1. commanding MECHA Start/Stop and other functions with a wired or wireless RF remote.
  2. commanding MECHA various functions with NN IR remote.
  3. triggering a camera with an IR remote emitter
  4. camera shutter release confirmation.

14 day money back guarantee.
1 year factory warranty.

For product suggestions/concerns and support please visit our forum.

Weight 1.2 kg
Dimensions 8 × 4 cm
Cable

Fujifilm RR-90 (F9980-3), Minolta RC-1000S, Sony RM-S1AM (F9980-4), Olympus RM-CB1 (F9980-8), Olympus RM-UC1 (F9980-9), Panasonic DMW-RSL1 (F9980-10), Pentax CS-310 (F9980-12), Canon RS-60E3, Contax LA-50, Pentax CS205, Olympus RM-CB2, Sigma CR-21 (F9980-1), Canon RS-80N3 (F9980-2), Nikon MC-30A (F9980-5), Nikon MC-DC1 (F9980-6), Nikon MC-DC2 (F9980-7), Sony RM-VPR1 (F9980-11)
