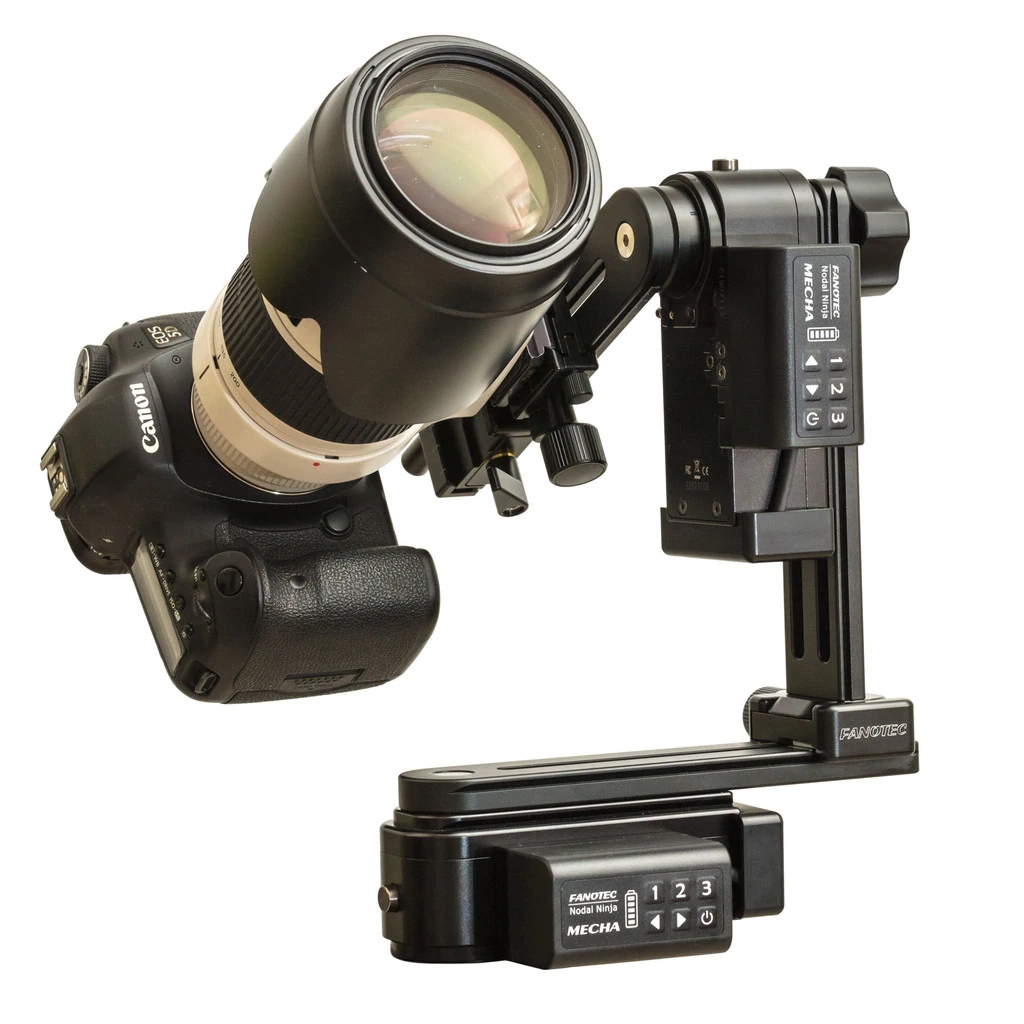

Dual Axis MECHA E2 C1 with NN6 and Nadir Adapter (F9908)

$1,195.95

Heavy duty Mecha E2 for NN6.

Dual axis pan and tilt.

Product price: $1,195.95
Total options:
Order total:

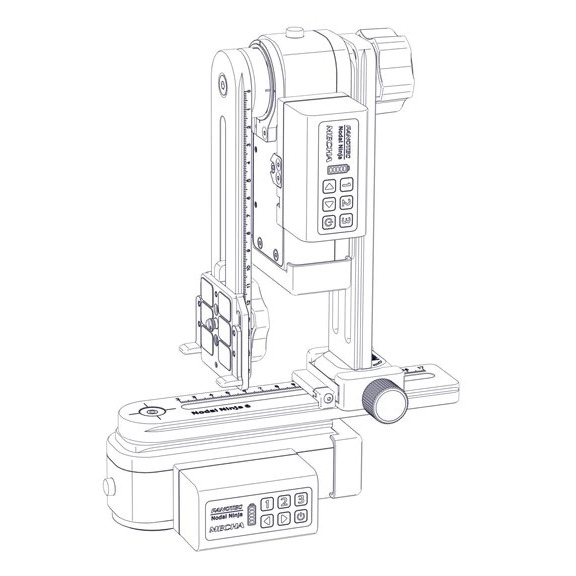

Finally a heavy duty and affordable “dual-axis” pan tilt head solution for full size DSLRs and lenses.
We use parts from NN6, together with 2x Mecha E2 Rotators and 2x C1 Controllers which are wirelessly linked together.
Use as a single-axis horizontal rotator single row shooting for turntable object VR. Or use as a dual-axis rotator for both horizontal and vertical movements.
The Mecha E2 and C1 being modular in design will be compatible with future Mecha rotators and controllers paving the way for future low-cost upgrade paths.
This setup supports a camera/lens up to 3.0 kg (6.6 lb) and NPP up to 145mm from the pivot point making it ideal for mirror-less, and full size DSLR cameras. Shoot 360° panoramas or even high-resolution gigapixel images.

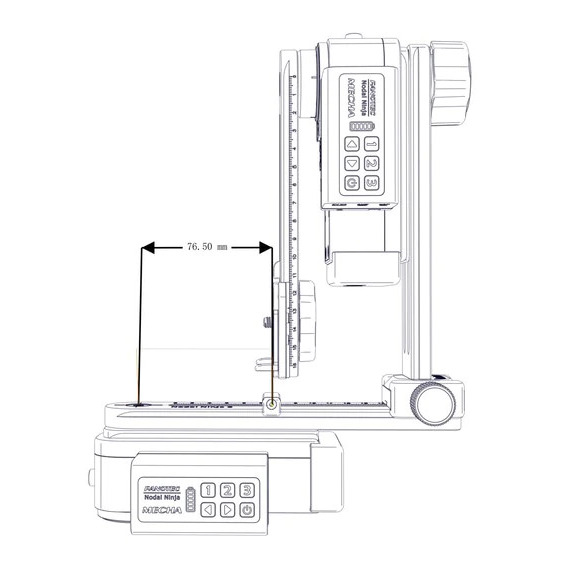

Max height of lens axis from camera base supported is 76.5mm.
Weight without spare and case: 2.4kg (5.3 lb).
Includes:
  • 2ea Mecha E2 Rotators
  • 2 ea Mecha C1 Controllers
  • NN6 Lower Rail
  • NN6 Upper Horizontal Rail
  • NN6 Vertical Rail
  • 1.2m Long Shutter release cable compatible with Dual-Axis Mecha
  • Case

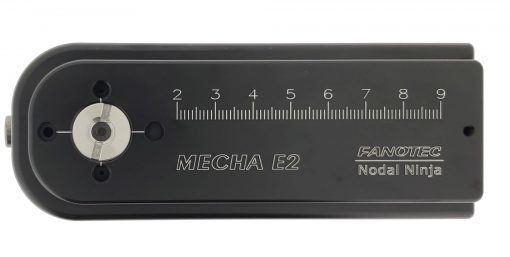

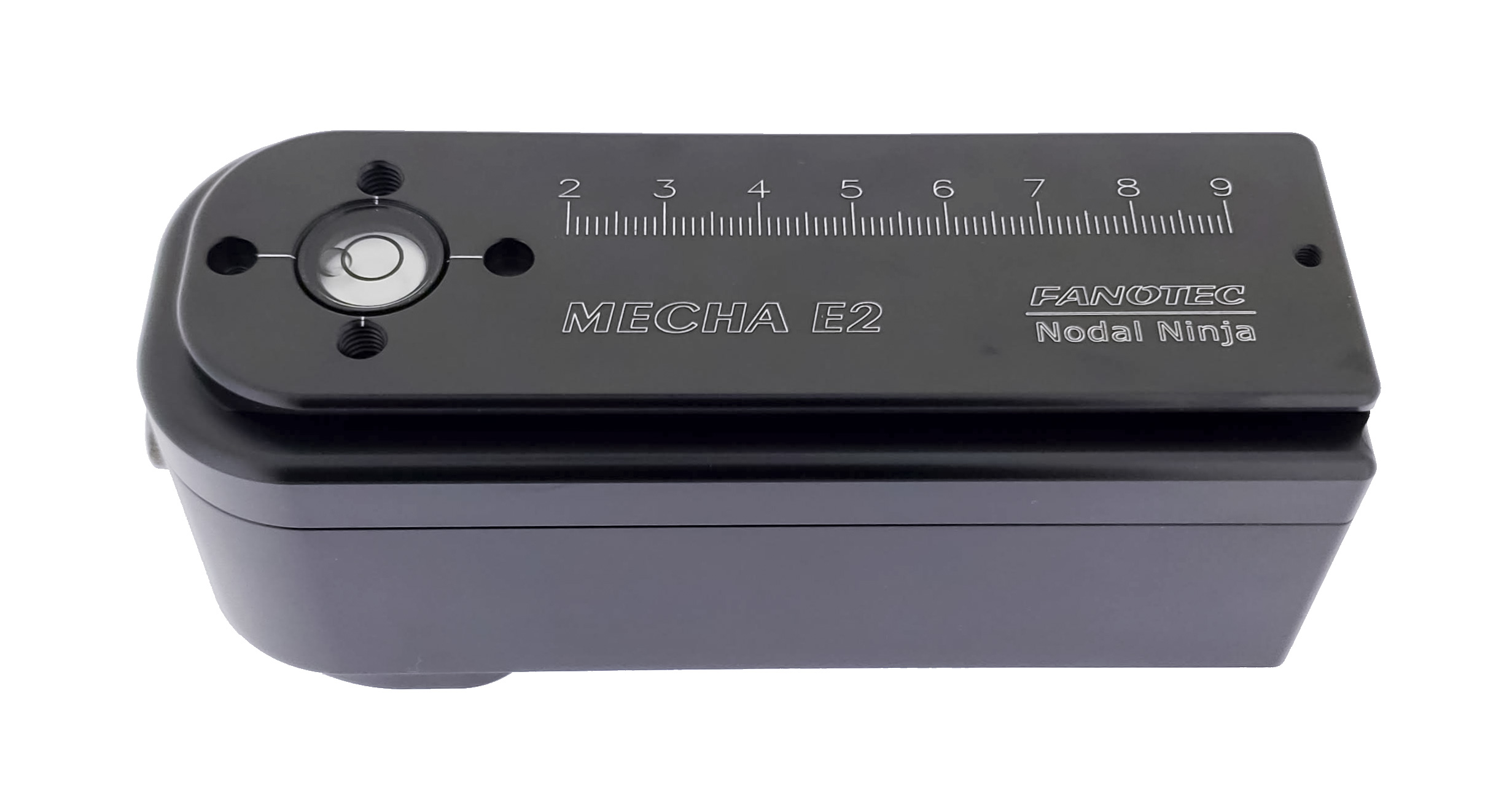

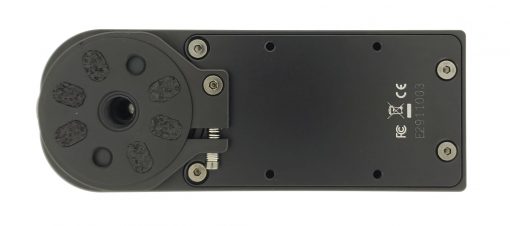

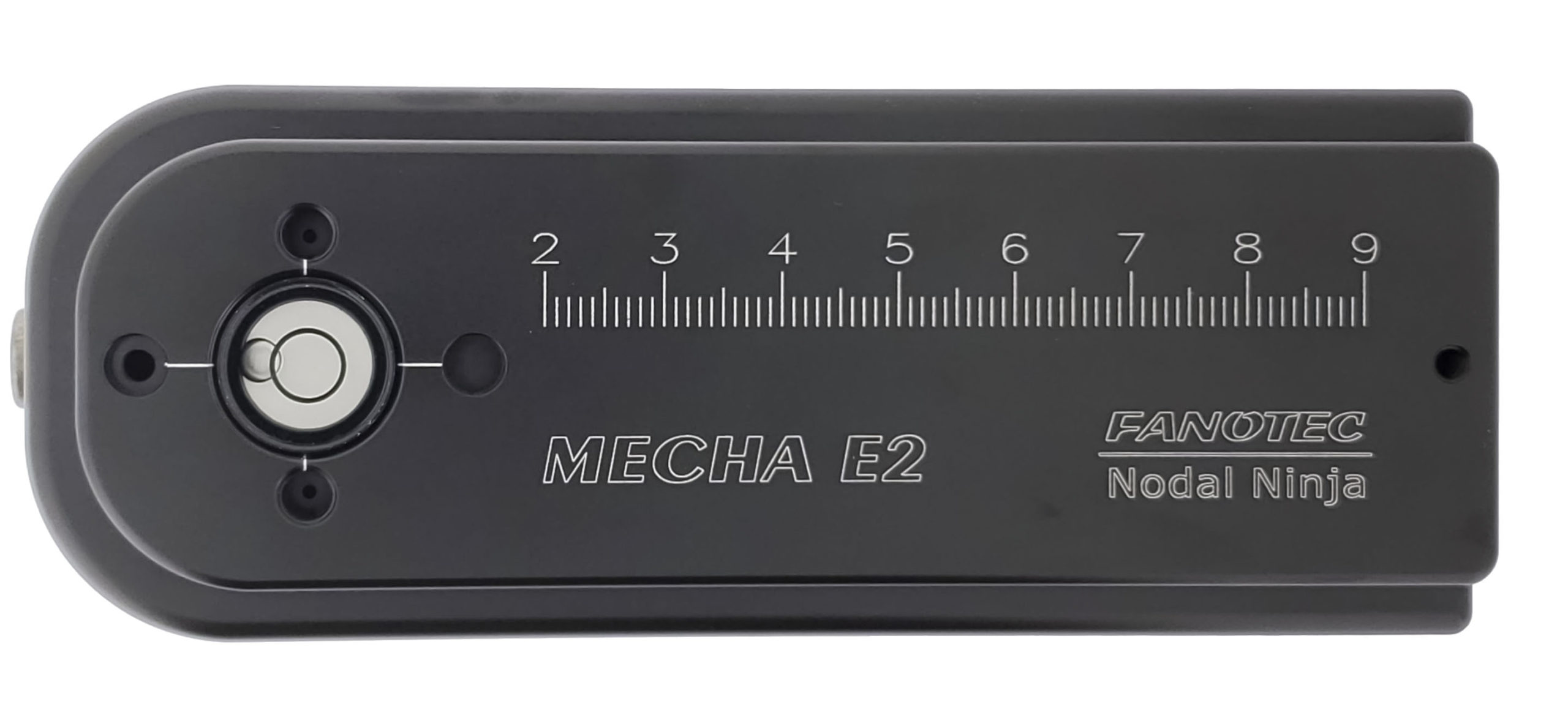

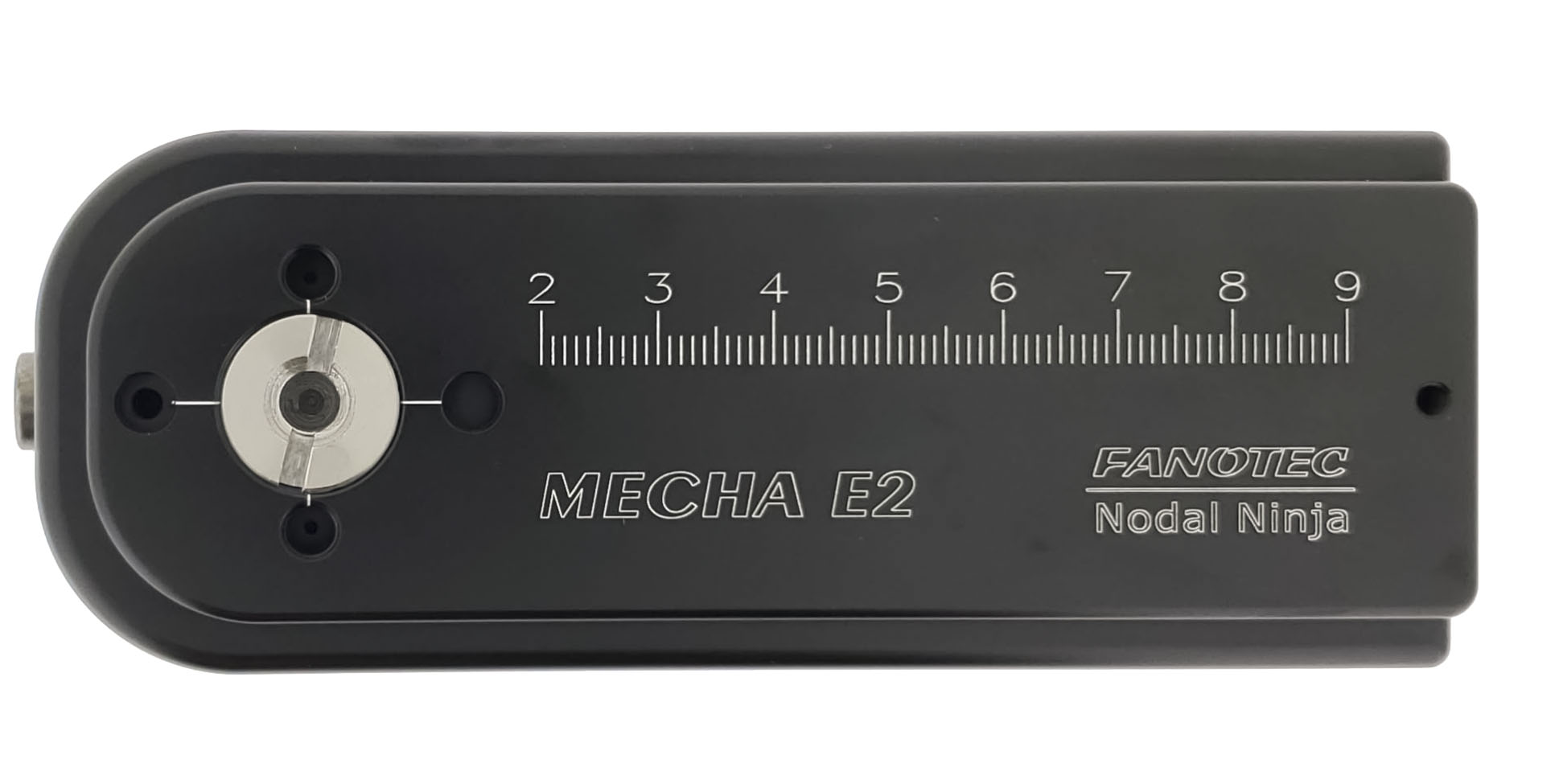

Mecha E2 Rotator Features

  • Supports 8.8bs (4kg), including panohead, strong enough for dual camera stereo setups.
  • Compact and light weight for the load rating.
  • Weight  22.8 oz (645g)
  • 126x48x51mm
  • Total weight of Mecha Rotator E2 + Single Axis Controller C1 approx. 29.3 oz (830g).
  • 14 day money back guarantee
  • 1 year factory warranty
  •  Any camera supporting a wired remote shutter release cable is compatible with MECHA.

Mecha documentation click here

Weight 1.2 kg
Dimensions 8 × 4 cm
Hot Shoe

JSC-2 Hot Shoe (most popular), JSC-6 Hot Shoe, JSC-8 Hot Shoe
Cable

Fujifilm RR-90 (F9980-3), Minolta RC-1000S, Sony RM-S1AM (F9980-4), Olympus RM-CB1 (F9980-8), Olympus RM-UC1 (F9980-9), Panasonic DMW-RSL1 (F9980-10), Pentax CS-310 (F9980-12), Canon RS-60E3, Contax LA-50, Pentax CS205, Olympus RM-CB2, Sigma CR-21 (F9980-1), Canon RS-80N3 (F9980-2), Nikon MC-30A (F9980-5), Nikon MC-DC1 (F9980-6), Nikon MC-DC2 (F9980-7), Sony RM-VPR1 (F9980-11)
