Dual Axis Mecha C2 E1 With NN3 MK3 and Nadir Adapter (F9921)

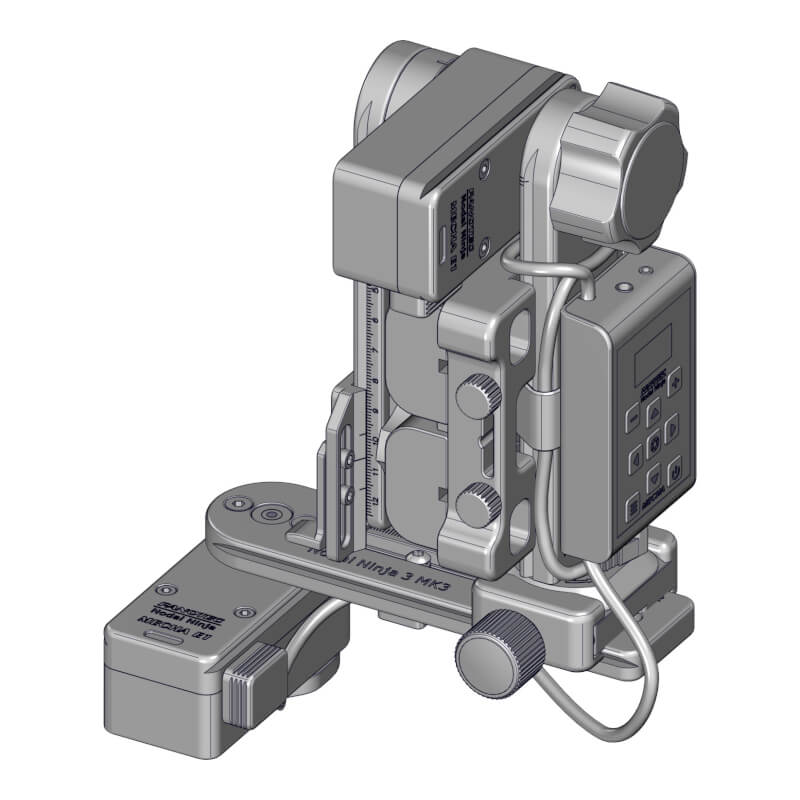

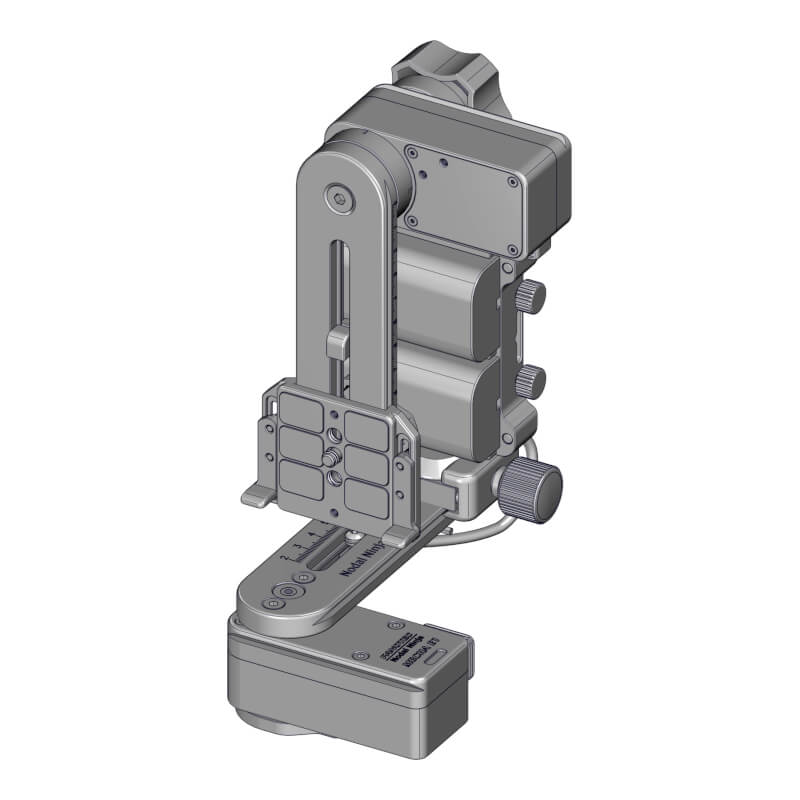

Dual Axis Mecha C2-E1 With NN3 MK3 and Nadir Adapter

Finally a compact and affordable “dual-axis” pan tilt head solution. We use parts from NN3 MK3, together with 2 MECHA E1 Rotators, a C2 Controller and a dual battery holder.Use as a single-axis horizontal rotator single row shooting for turntable object VR, or use as a dual-axis rotator for both horizontal and vertical movements.

The MECHA E1 and C2 being modular in design will be compatible with future Mecha rotators and controllers paving the way for future low-cost upgrade paths.

• Shoot 360° panoramas or even high-resolution gigapixel images.
• Low cost “dual-axis” pan tilt head solution
• Weight 1.425kg
• NPP adjustment is up to 110mm from the pivot point.
• Supports a camera/lens up to 2kg (4.4 lb).
• Supports a turning torque up to 16 kg-cm (13.9 lb-in)
• Ideal for mirrorless and light DSLRs
• Shoot 360° panoramas and high-resolution gigapixel images

Dual Axis MECHA C2 Controller

• Here comes the MECHA C2 controller, a dedicated dual axis controller with an OLED display and external battery.
• The display can guide you through all the major operations and settings, making C2 much more intuitive than the single axis C1 controller with LED indicators only.
• The use of external battery means you can carry spare batteries and quickly refuel MECHA before or during a shooting section.
• A power cable splitter (optional) is available for using 2 sets of batteries at the same time for extended operation and / or changing batteries without a pause.

F9921 Package Includes:

• One MECHA C2 Controller (F9910)
• One NN3 MK3 Lower Rail (F3316)
• One NN3 MK3 Upper Rail with Camera Mounting Plate and Knob (F3337+F6027)
• One NN3 MK3 Vertical Rail (F3328)
• One NN3 MK3 Vertical Rail and Horizontal Rail Range Extender (F3329)
• One (Quick Release) Nadir Adapter (F6026)
• One Dual Battery Holder (2-Piece Bottom-to-Bottom) (F9943)
• One Carrying Case (F9986-1)
• Miscellaneous Spare and Extras for Customization and Creative Applications

Essential Items NOT Included:

• Two NP-F550 Type Batteries and a Charger
• One Long Shutter Release Cable for Dual-Axis MECHA – Select addon options on this page.

Recommended Accessories:

• PC Sync Cable for Shutter Release Confirmation (F9981)
• Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port) – Select addon options on this page.

MECHA is compatible with cameras having a wired remote port. Use the Select Shutter Release Cables filter to check compatibility and choose the right cable for your camera.

MECHA can only trigger the camera. It acts like a typical remote shutter release. Auto exposure bracketing is done by the camera.

Mecha Quick Reference Guide safe links:

• Accessing the Web Control Interface of MECHA – http://bit.ly/mecha-access
• How to update the firmware – http://bit.ly/mecha-firmware
• The Mecha E1 – basic setup and how to use – http://bit.ly/mecha-setup
• Mecha Questions Forum – http://bit.ly/mecha-forum
