Nodal Ninja Mecha E1

Posted on by anthony
Mecha E1 Controller Rotator and R Series pano head
13
Mar

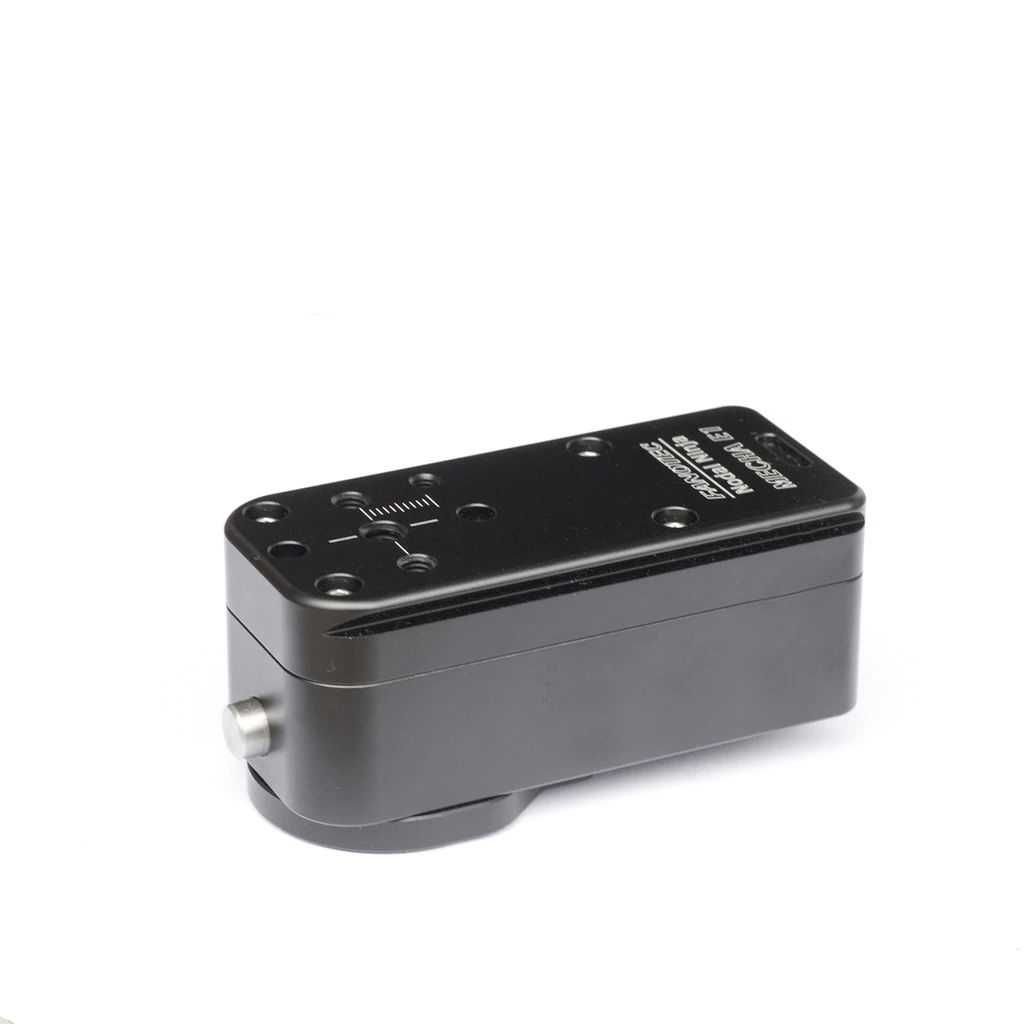

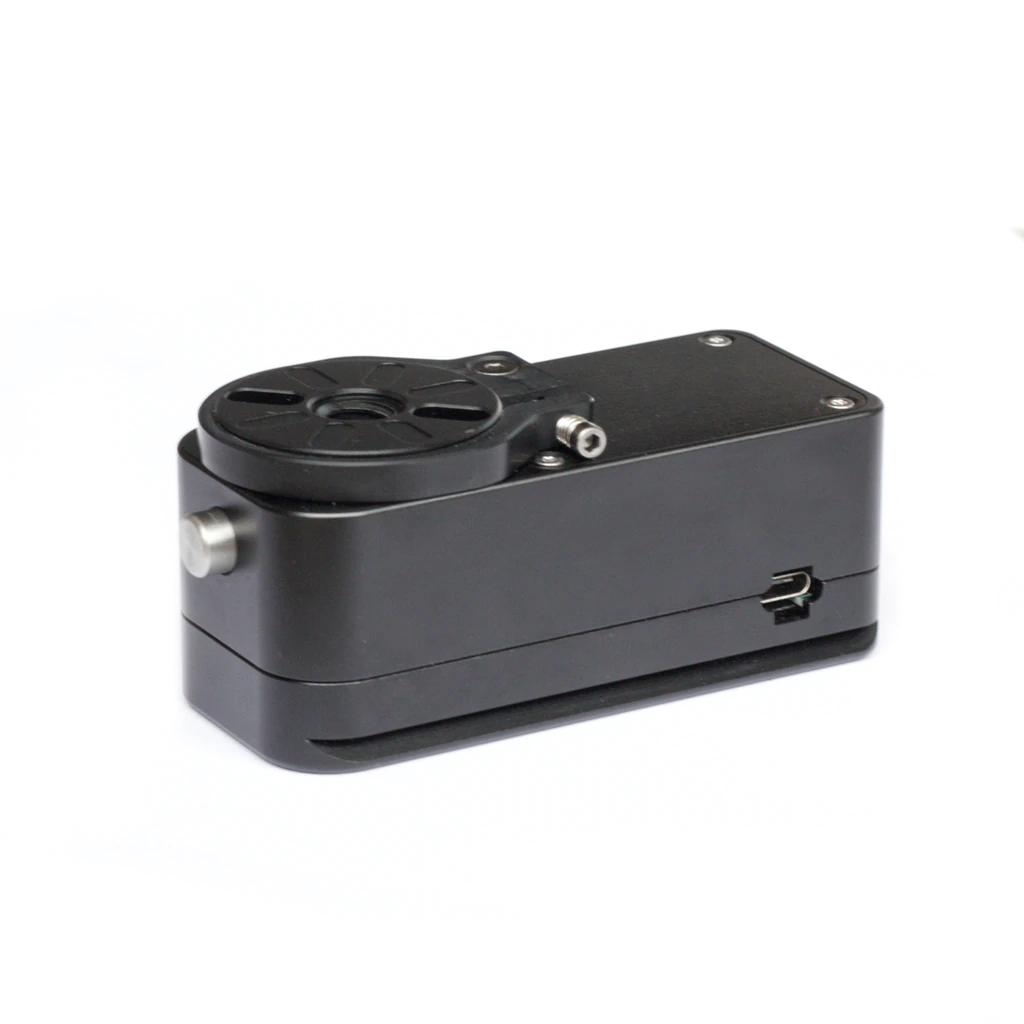

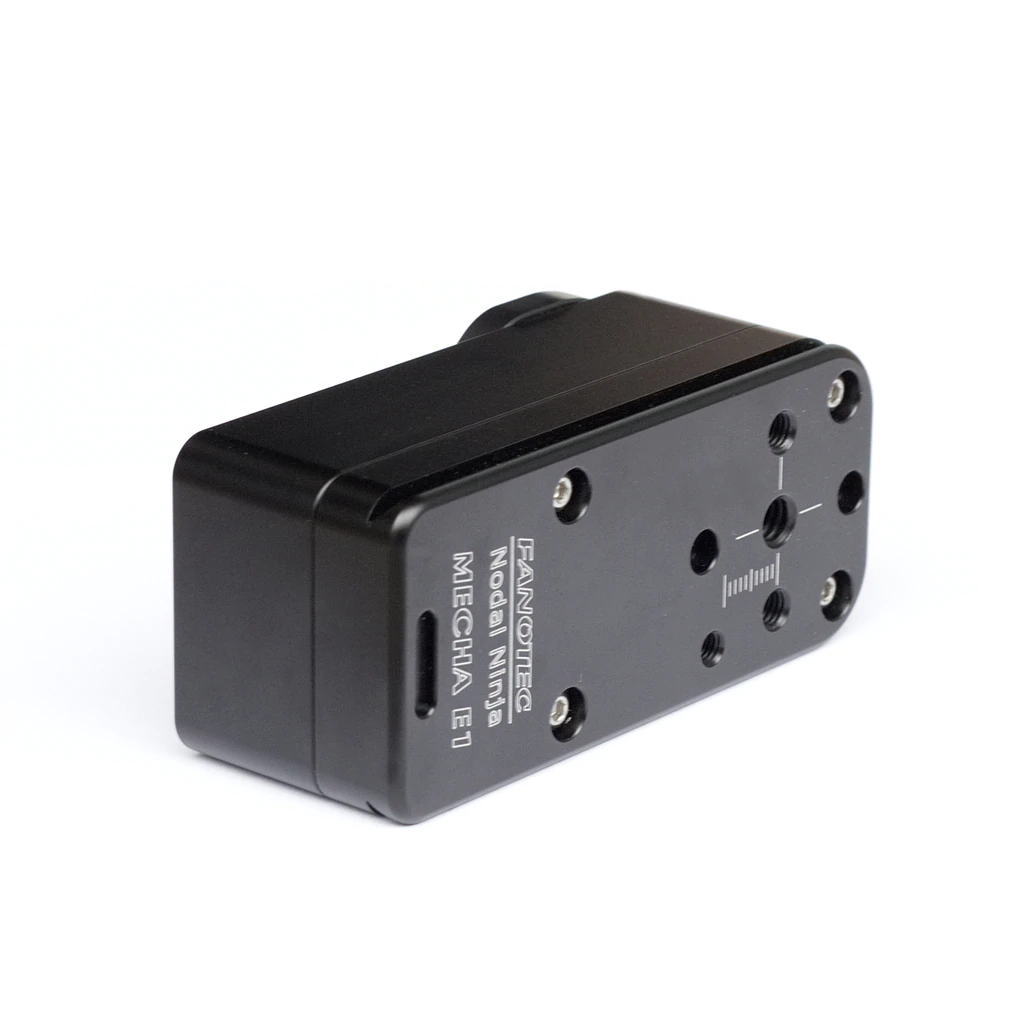

The new Nodal Ninja Mecha E1 Controller and Rotator is Nodal Ninja’s first motorised rotator. This version is designed for use with the following Nodal Ninja pano heads:

  • R1
  • R10
  • R20
  • NN3 MK2
  • NN3 MK3
  • RS1

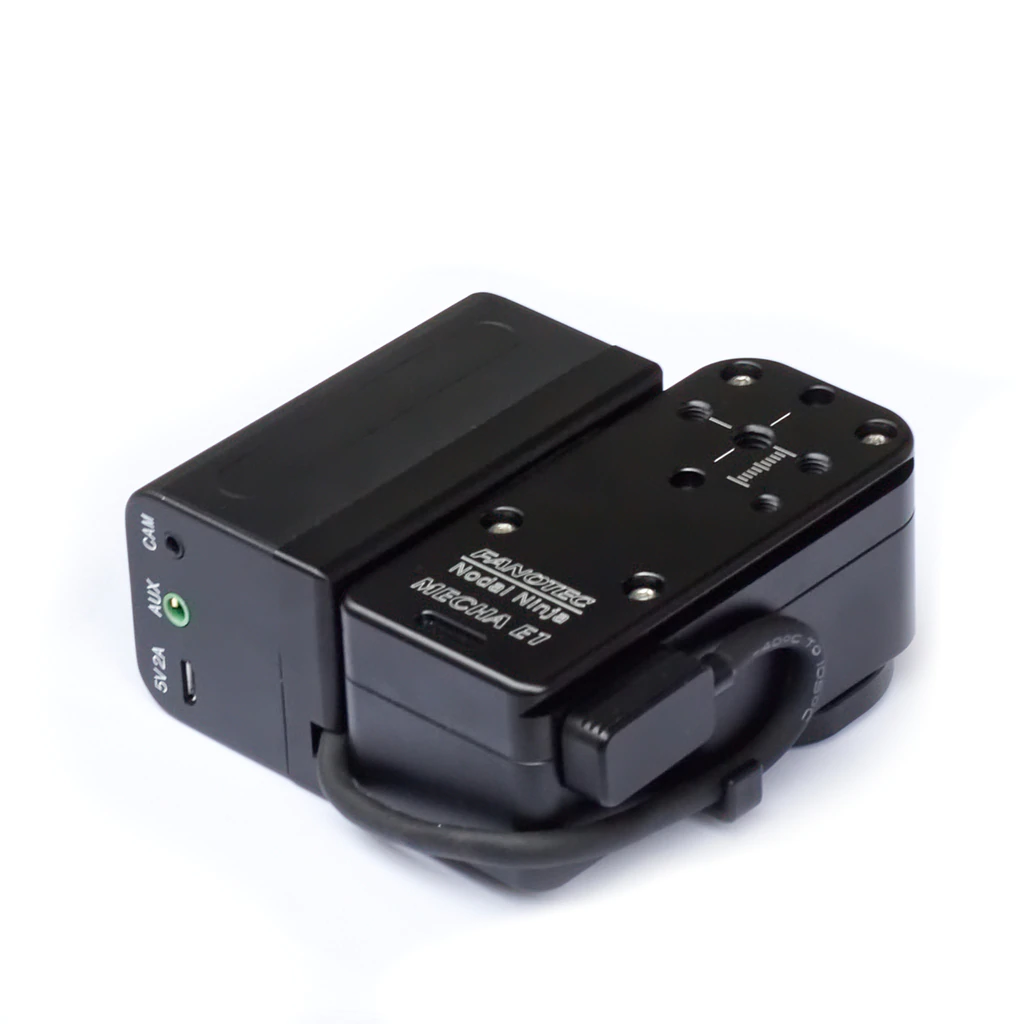

Mecha is lightweight, quiet and power efficient. Together with the Single Axis Controller (F9910), it automates the panning axis of Nodal Ninja.

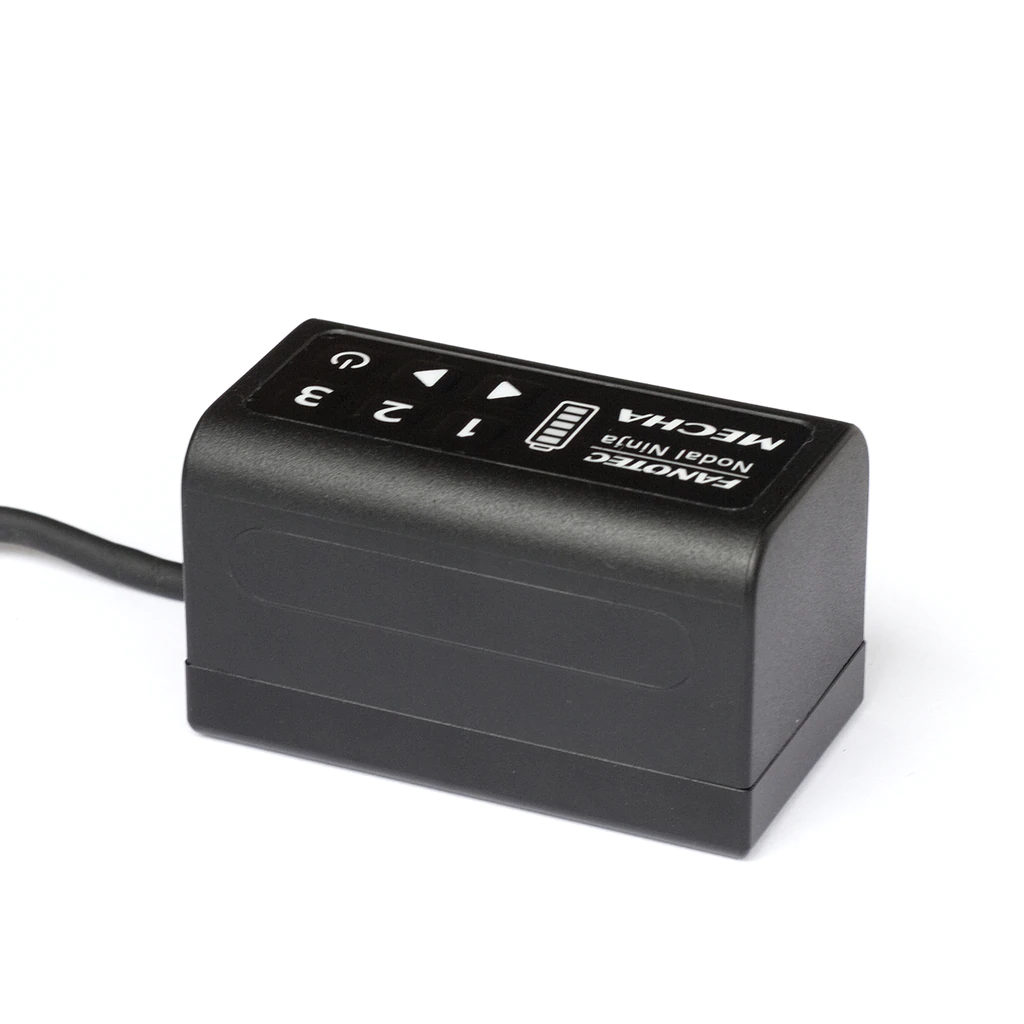

Mecha Single Axis Controller Features:

  • Supports one Mecha rotator.
  • Compact controller with built in battery and charger.
  • NCR18650GA high capacity batteries, 7.2v, 3350mAh, 12Wh.
  • WiFi remote control from smartphones, tablets, PCs by using simple web page interface.
  • Supports linking and controlling multiple controllers via WiFi , connection via a WiFi access point, over the air firmware upgrade and remote control over the internet.

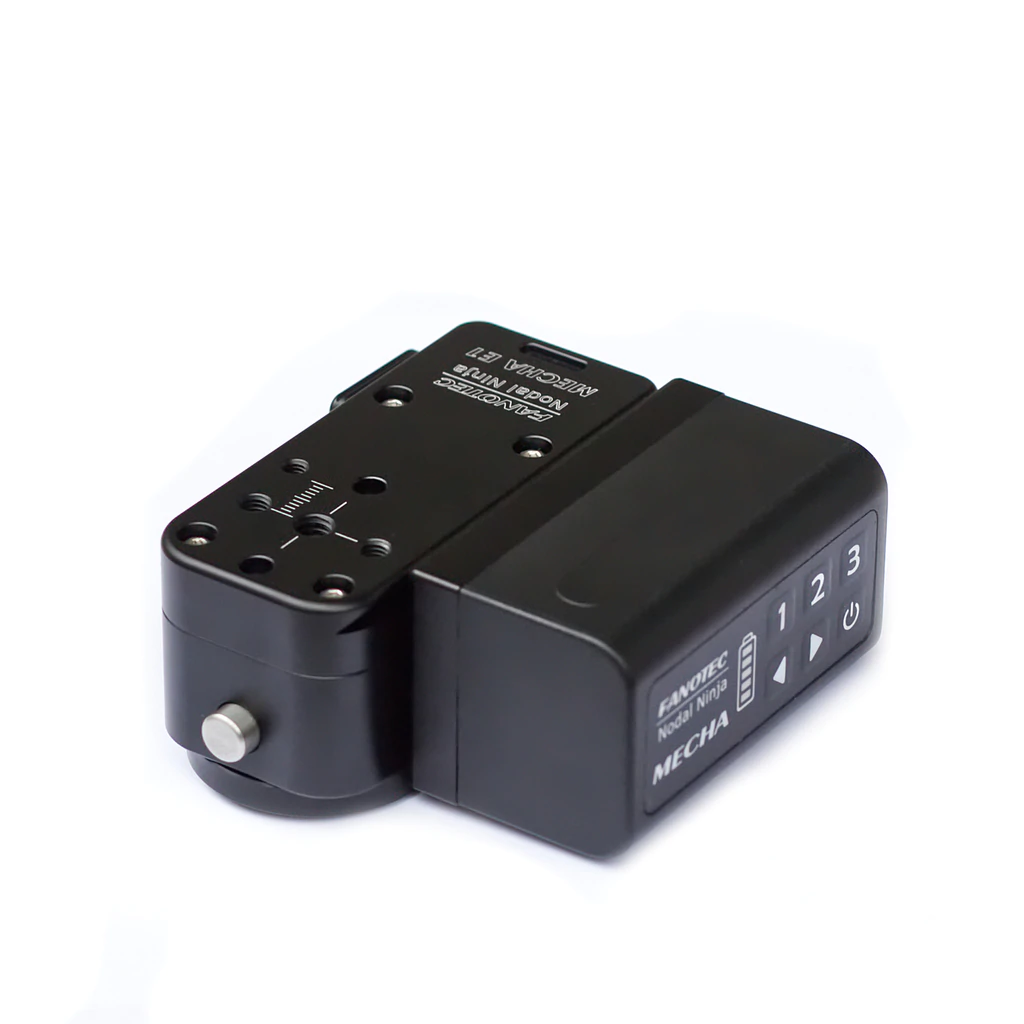

  • 3 buttons to run presets stored in the memory, which can be configured via the web page interface.
  • 5 LED’s to indicate the remaining battery capacity.

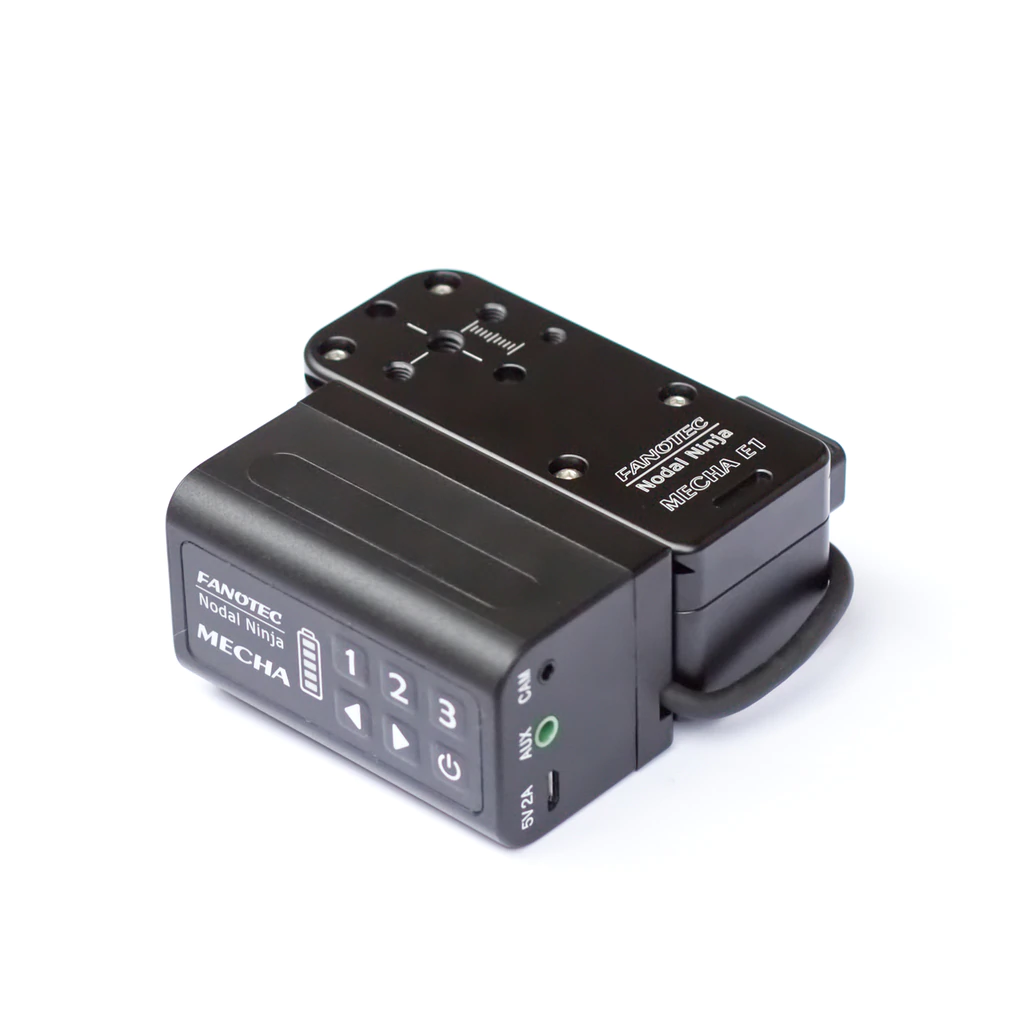

  • CAM port with opto-isolated trigger for focus and shutter release.
  • Multipurpose AUX port (to be implemented with future firmware upgrade) for shutter confirmation, Radio Frequency Start/Stop remote trigger, wired Start/Stop trigger or IR remote emitter etc.
